Ran F Series 2"

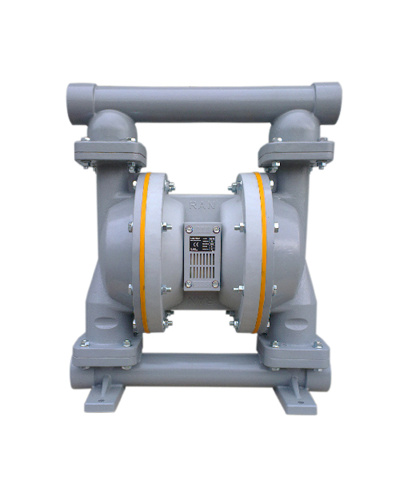

2" (50.8 mm) Aluminium Body Diaphragm Pump (Side Outlet)

  • Code » F50-AX-S
  • Max. Capacity » 550 lpm
  • Fluid Inlet-Outlet » 2"
  • Max. Working Pressure » 8 bar
  • Housing Material » Aluminium
  • Diaphragm Options » Santoprene-Teflon-BunaN
  • Valve Ball Options » Santoprene-Teflon-PE-Delrin
  • Valve Seat Options » Santoprene-Teflon-PE-Delrin

Downloads

User Guide
Performance Chart

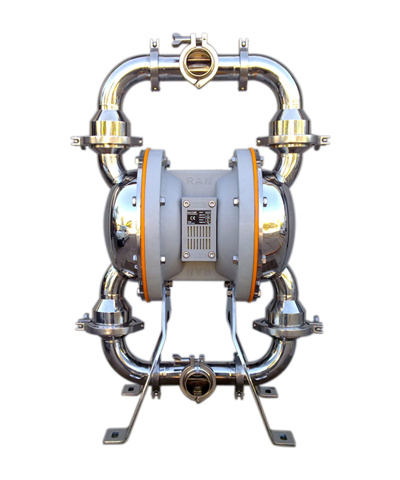

2" (50.8 mm) Stainless Steel Body Diaphragm Pump

  • Code » F50-SX
  • Max. Capacity » 550 lpm
  • Fluid Inlet-Outlet » 2"
  • Max. Working Pressure » 8 bar
  • Housing Material » Stainless Steel
  • Diaphragm Options » Teflon
  • Valve Ball Options » Teflon
  • Valve Seat Options » Teflon

Downloads

User Guide
Performance Chart

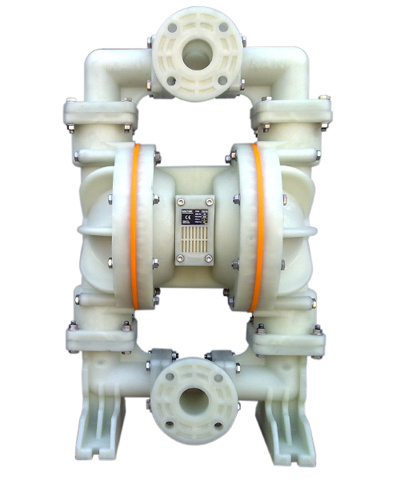

2" (50.8 mm) PP Body Diaphragm Pump

  • Code » F50-PX
  • Max. Capacity » 550 lpm
  • Fluid Inlet-Outlet » 2"
  • Max. Working Pressure » 8 bar
  • Housing Material » Polypropylene
  • Diaphragm Options » Santoprene-Teflon-Buna-N
  • Valve Ball Options » Santoprene-Teflon-PE-Delrin
  • Valve Seat Options » Polypropylene

Downloads

User Guide
Performance Chart

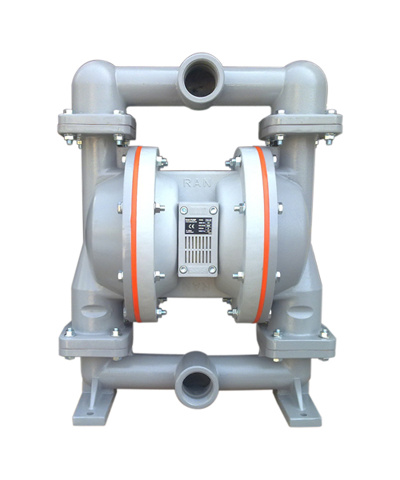

2" (50.8 mm) Aluminium Body Diaphragm Pump

  • Code » F50-AX
  • Max. Capacity » 550 lpm
  • Fluid Inlet-Outlet » 2"
  • Max. Working Pressure » 8 bar
  • Housing Material » Aluminium
  • Diaphragm Options » Santoprene-Teflon-BunaN
  • Valve Ball Options » Santoprene-Teflon-PE-Delrin
  • Valve Seat Options » Santoprene-Teflon-PE-Delrin

Downloads

User Guide
Performance Chart
