Ran D Series 1"

1" (25.4mm) PVDF Body Diaphragm Pump

  • Code » D25-PVX
  • Max. Capacity » 150 lpm
  • Fluid Inlet-Outlet » 1"
  • Max. Working Pressure » 7 bar
  • Housing Material » PVDF
  • Diaphragm Options » Santoprene-BunaN-Teflon
  • Valve Ball Options » Santoprene-Teflon-PE
  • Valve Seat Options » PE-Teflon

Downloads

User Guide
Performance Chart



1" (25.4mm) PP Body Diaphragm Pump

  • Code » D25-PX
  • Max. Capacity » 150 lpm
  • Fluid Inlet-Outlet » 1"
  • Max. Working Pressure » 7 bar
  • Housing Material » Polypropylene
  • Diaphragm Options » Santoprene-BunaN-Teflon
  • Valve Ball Options » Santoprene-Teflon-PE
  • Valve Seat Options » PE-Teflon

Downloads

User Guide
Performance Chart



1" (25.4mm) Aluminium Body Diaphragm Pump

  • Code » D25-AX
  • Max. Capacity » 150 lpm
  • Fluid Inlet-Outlet » 1"
  • Max. Working Pressure » 7 bar
  • Housing Material » Aluminium
  • Diaphragm Options » Santoprene-Teflon-BunaN
  • Valve Ball Options » Santoprene-Teflon-PE-Delrin
  • Valve Seat Options » PE-Delrin-Teflon

Downloads

User Guide
Performance Chart



1" (25.4mm) Stainless Steel Body Diaphragm Pump

  • Code » D25-CSX
  • Max. Capacity » 150 lpm
  • Fluid Inlet-Outlet » 1"
  • Max. Working Pressure » 7 bar
  • Housing Material » Stainless Steel
  • Diaphragm Options » Teflon
  • Valve Ball Options » Teflon
  • Valve Seat Options » Teflon

Downloads

User Guide
Performance Chart

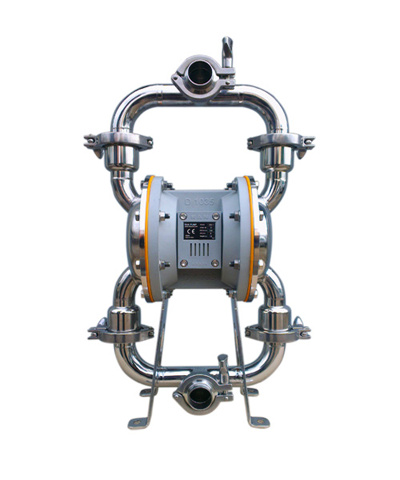

1" (25.4mm) Stainless Steel Body Diaphragm Pump

Designed for hygienic applications.

  • Code » D25-SX
  • Max. Capacity » 150 lpm
  • Fluid Inlet-Outlet » 1"
  • Max. Working Pressure » 7 bar
  • Housing Material » Stainless Steel
  • Diaphragm Options » Teflon
  • Valve Ball Options » Teflon
  • Valve Seat Options » Teflon

Downloads

User Guide
Performance Chart
