Ran B Series 1/2"

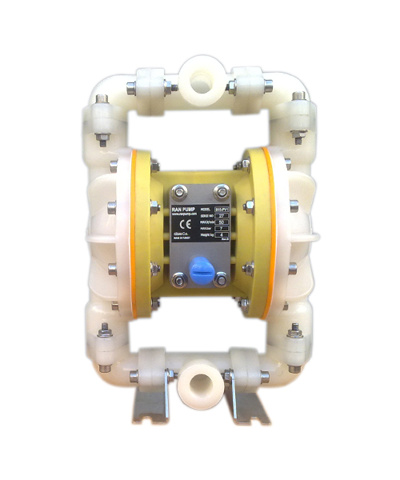

1/2" (12.7 mm) PVDF Body Diaphragm Pump

  • Code » B15-PVX
  • Max. Capacity » 60lpm
  • Fluid Inlet-Outlet » 1/2"
  • Max. Working Pressure » 7 bar
  • Housing Material » PVDF
  • Diaphragm Options » Santoprene-Teflon-BunaN
  • Valve Ball Options » Santoprene-Teflon-PE
  • Valve Seat Options » PE-Teflon

Downloads

User Guide
Performance Chart

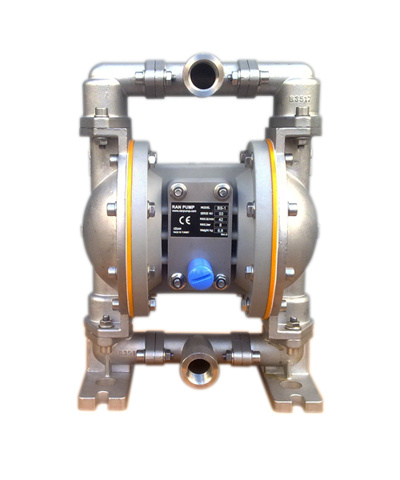

1/2" (12.7 mm) Stainless Steel Body Diaphragm Pump

  • Code » B15-SX
  • Max. Capacity » 60lpm
  • Fluid Inlet-Outlet » 1/2"
  • Max. Working Pressure » 7 bar
  • Housing Material » Stainless Steel
  • Diaphragm Options » Teflon
  • Valve Ball Options » Teflon
  • Valve Seat Options » Teflon

Downloads

User Guide
Performance Chart

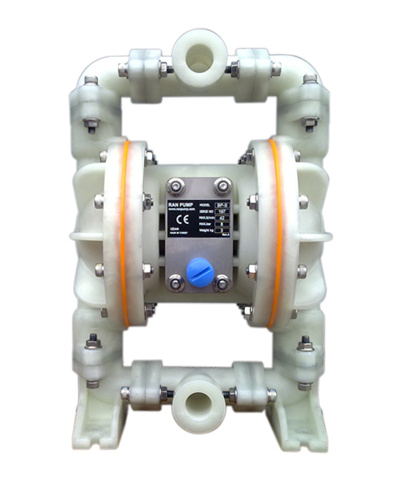

1/2" (12.7 mm) PP Body Diaphragm Pump

  • Code » B15-PX
  • Max. Capacity » 60lpm
  • Fluid Inlet-Outlet » 1/2"
  • Max. Working Pressure » 7 bar
  • Housing Material » Polypropylene-PVDF
  • Diaphragm Options » Santoprene-Teflon-BunaN
  • Valve Ball Options » Santoprene-Teflon-PE
  • Valve Seat Options » PE-Teflon

Downloads

User Guide
Performance Chart

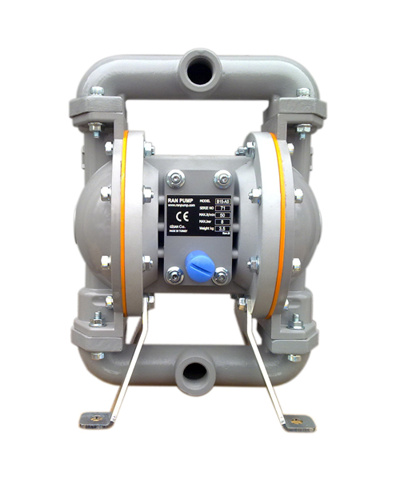

1/2" (12.7 mm) Aluminium Body Diaphragm Pump

  • Code » B15-AX
  • Max. Capacity » 60 lpm
  • Fluid Inlet-Outlet » 1/2``
  • Max. Working Pressure » 7 bar
  • Housing Material » Aluminium
  • Diaphragm Options » Santoprene-Teflon-BunaN
  • Valve Ball Options » Santoprene-Teflon-PE-Delrin
  • Valve Seat Options » PE-Teflon-Delrin

Downloads

User Guide
Performance Chart
